NEW TFT LCDs WITH 100,000 HOURS LONG LIFE BACKLIGHTS
Ideal for Industrial use
For immediate use May 27, 2015
NLT Technologies, Ltd.
8.4-inch SVGA
NL8060AC21-21D

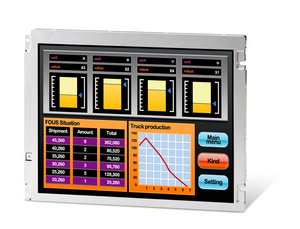

10.4-inch SVGA
NL8060AC26-52D
KAWASAKI, JAPAN, May 27, 2015 --- NTL Technologies, Ltd. (NLT, President: Susumu Ohi; Head office: Kawasaki, Kanagawa) introduced two new SVGA (800 x 600 pixel) TFT LCDs for industrial applications with long-life LED backlights that provide 100,000 hours of operation. Applications for these displays include factory automation, analytical instrumentation and test and measurement equipment.
Available in two sizes, 8.4-inch and 10.4-inch diagonal, the displays provide vivid color reproduction with low power consumption by utilizing NLT’s proprietary ColorXcell technology. ColorXcell enables the reproduction of images that are comparable in color intensity to the original video source. With ColorXcell, viewers can see high quality images on the display without an increase in power consumption. Coupled with an LED backlight ColorXcell technology achieves a further reduction in power consumption of approximately 50%(*1).
The long life 100,000 hour backlights of these LCDs, a new breakthrough for NLT, significantly reduces customers maintenance cost and time, a key benefit for industrial applications that may be in operation 24/7. Moreover, the luminance half-life of the backlight has been dramatically improved, resulting in long-term stable display capability.
In addition to the long life backlight, the new LCDs meet the most commonly required specifications for industrial applications, including screen size, resolution, luminance, power consumption, contrast, and operating temperature range. The displays guarantee stable performance even under harsh conditions such as high operation temperature or uninterrupted operation, making them ideal for industrial use.
The new TFT LCDs will be showcased at Display Week 2015 (#719), June 2-4, in San Jose, California, USA.
*1: Estimated data based on NLT’s 10.4-inch SVGA model
General Specification
| 8.4-inch SVGA | 10.4-inch SVGA | |
|---|---|---|
| Part number | NL8060AC21-21D | NL8060AC26-52D |
| Resolution | 800(H) x 600(V) | 800(H) x 600(V) |
| Display colors | 16.77M / 262K colors | 16.77M / 262K colors |
| Luminance | 400 cd/㎡(typ.) | 400 cd/㎡(typ.) |
| Contrast ratio | 800：1(typ.) | 900：1(typ.) |
| Viewing angle | (H)160 / (V)160 | (H)160 / (V)160 |
| Interface | LVDS | LVDS |
| Power consumption | 3.4 W(typ.) | 4.7 W(typ.) |
| Operating temperature | -30℃ ～ +80℃ | -30℃ ～ +80℃ |
| Polarizer surface | AG | AG |
| LED driver board | Built-in | Built-in |
| Remarks | 100k hour long life LED ColorXcell technology |
100k hour long life LED ColorXcell technology |
Values in bracket are tentative.
The press release and other information in this file may be out of date on observation.
